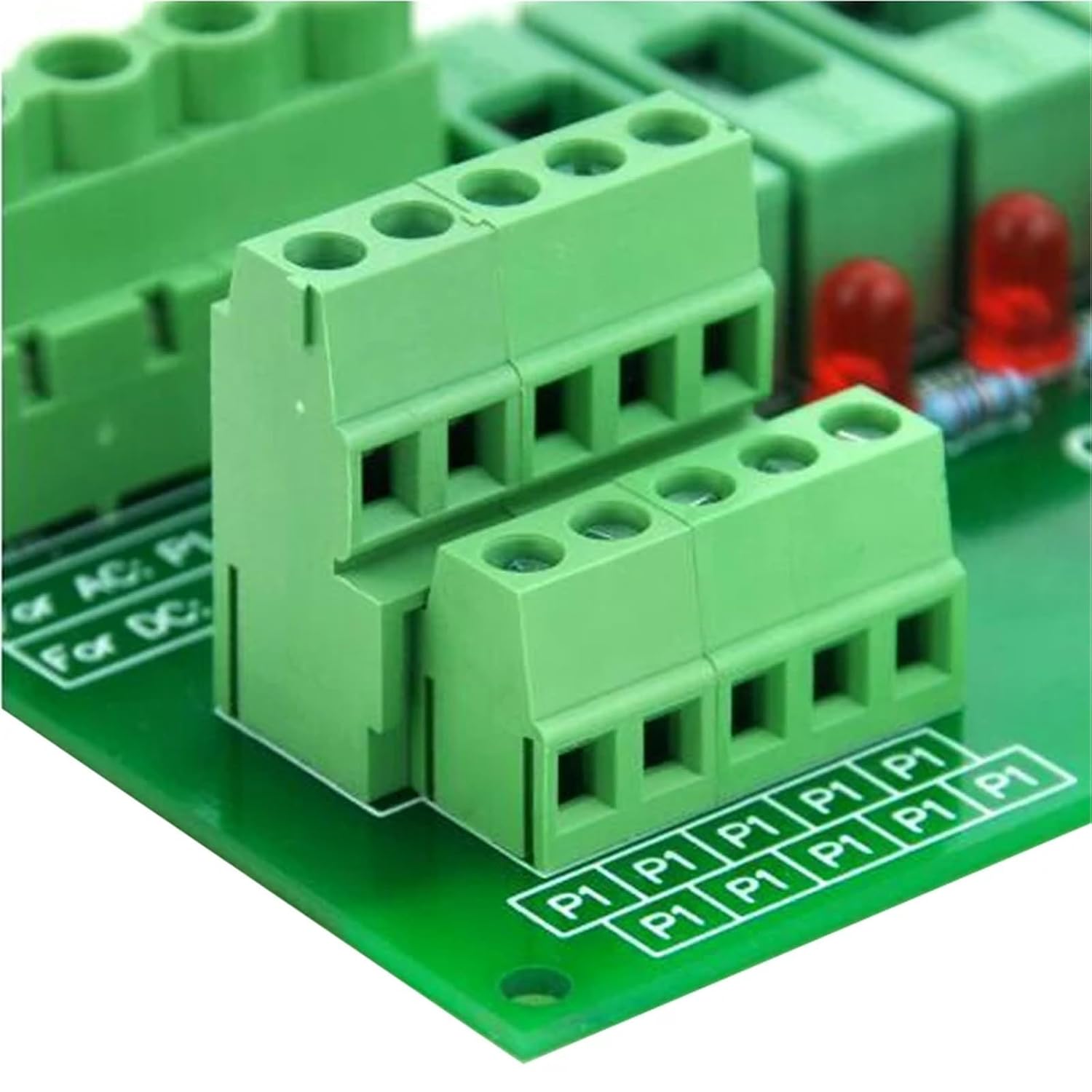

1PCS DIN Rail Mount 10 Position Power Distribution Fuse Module Board, for AC/DC 5~48V.
Product details
| Management number | 250063616 | Release Date | 2026/09/17 | List Price | US$50.40 | Model Number | 250063616 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Terminal BlocksPanel Mount Power Distribution Fuse Module Board.Specification:Work voltage: AC or 5~48V, total current rating 40Amp.Dimensions: 162mm x 72.5mm x 29mm (W x L x H).Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 6.3A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.Fuse holders for 5x20mm(DxL) tube fuse, factory-installed fuses T6.3Amp. with fuse fail indication functionFR-4 fiber glass PCB, dual copper layers.==========Model Number : HL-Fuse-03
- Terminal Blocks
- 1PCS DIN Rail Mount 10 Position Power Distribution Fuse Module Board, For AC/DC 5~48V.
| ASIN | B0HJ5KF8DK |
|---|---|
| Color | One Color |
| Gauge | 1 |
| Model | LNNOTXMAM |
| Pitch | 1 inches |
| Brand Name | LNNOTXMAM |
| Part Number | LNNOTXMAM |
| Manufacturer | LNNOTXMAM |
| Connector Type | Clamp |
| Number of Items | 1 |
| Specification Met | ATEX |
| Number Of Contacts | 1 |
| Item Dimensions W x H | 1"W x 1"H |
