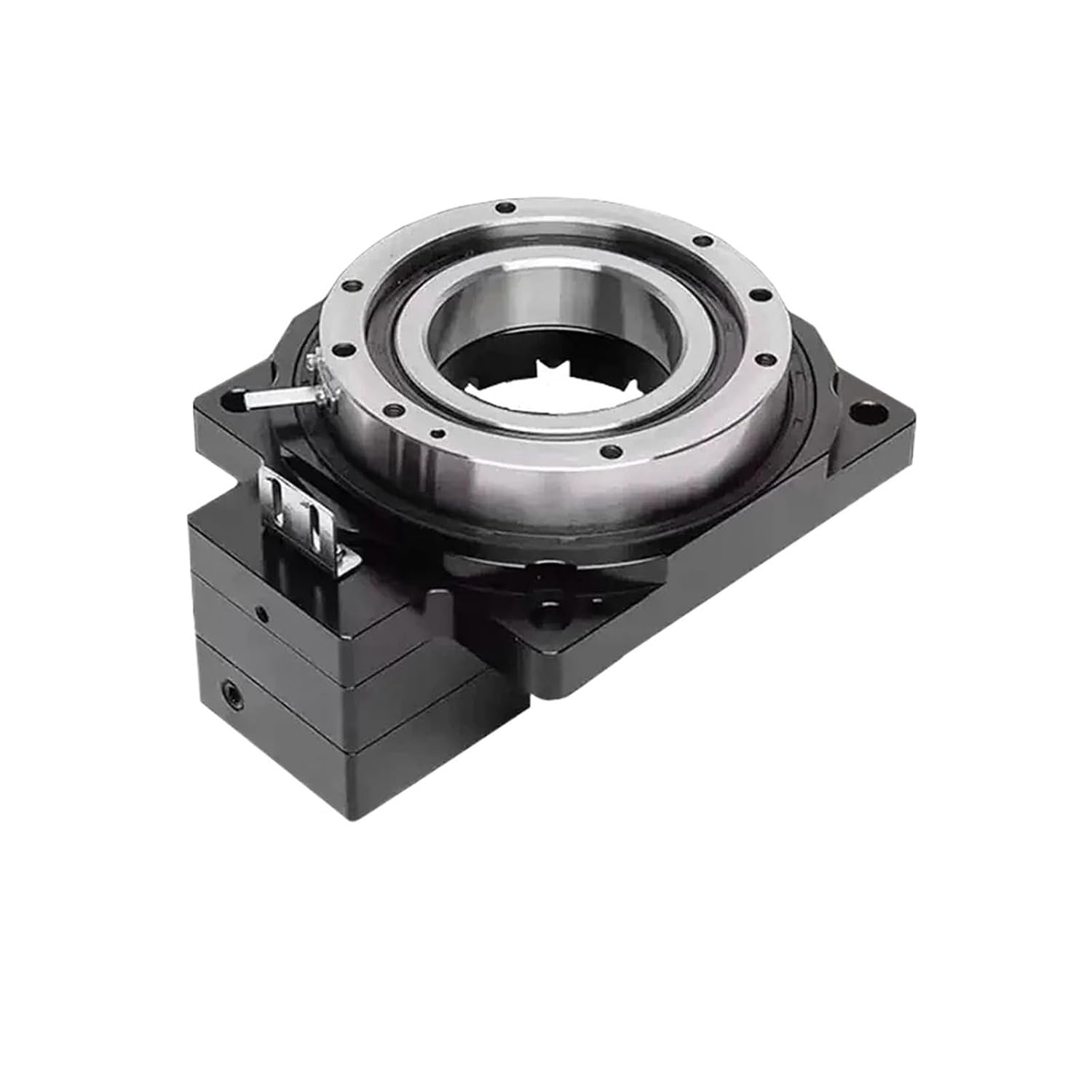

CNC Hollow Rotating Platform Ratio 5-200:1 4 Axis 5 Axis R Axis High Precision Replace Cam Indexer/DD Motor for Cutting Tables(ZCT060 for 40mmServo,Ratio 5 to 1)

1Pcs * Hollow rotating platform1Pcs * Photoelectric sensorProduct Features:1. The rotary table of the hollow rotary platform is of hollow structure, and the motor is connected at the side to facilitate the installation of air pipes and wires in the smelting tool. Like the divider and DD motor, it can directly fix the heavy objects on the platform for transmission.2. Considering the side force and other problems when the product is used, we adopt cross roller bearing, and an anti overturning stable ring is set in the middle. In order to better withstand the lateral force load in use.3. The body is made of aluminum alloy and processed by high-precision CNC to ensure the accuracy of all parts. The gear adopts the carburizing heat treatment and grinding process, which can reach the gear accuracy of grade 5 after machining, and its surface hardness can reach 58-62HRC. After the assembly of the product is completed, -- lapping procedures will be carried out to ensure that the parallelism and perpendicularity of the end face are within a trace of runout.4. The accuracy level of some gears of the hollow rotating platform is up to 4, which makes the hollow rotating platform have very small air return. We can compensate for the error during assembly by designing the adjustable gear center distance, and the repeated positioning accuracy can reach less than 10 arc seconds.Model Number : Hollow Rotate PlatformOrigin : Mainland ChinaCertification : CEFunction 1 : High Precision Hollow Rotating PlatformFunction 2 : Replace DD motorFunction 3 : Electric Turntable DiscFunction 4 : Replace cam splitterFunction 5 : Planetary gearboxFunction 6 : Gear MotorFunction 7 : Rotational positioningFunction 8 : Mechanical armFunction 9 : Replacing the cam splitterFunction 10 : CNC indexing deviceFunction 11 : manipulator jointFunction 12 : Machine tool fourth axisFunction 13 : Electric right angle turntableFunction 14 : Right Angle positioning divider

• Versatile Rotational Platform:Ideal for a range of rotary motion scenarios, from CNC tables to robots and military radars.
• Cross Roller Bearing Design:Equipped with cross roller bearings and a stabilizing ring for robust resistance to lateral force loads.
• Rotating Platform For Cnc|Rotating Platform Cnc|High Precision Gearing:Features a grade 5 carburized gear with a hardness of 58-62HRC, ensuring high precision and durability.
• CNC Precision Manufacturing:Crafted with high-precision CNC machining for consistent accuracy across all parts and components.
• Adaptable Rotational Precision:Offers a repeat positioning accuracy of less than 10 arc seconds, facilitating reliable operation in various applications.
